If you want HDPE pipes that do not leak, electrofusion couplings are a good choice. Electrofusion has heating parts inside. These parts melt the pipe and fitting surfaces. This makes a strong and even joint. This stops leaks that can happen from bad installation or outside pressure. You can install it easily with the right tools. You must follow the maker’s instructions carefully. Many experts use electrofusion couplings. They trust them because they last long and work well in water and gas pipes.
Electrofusion couplings make strong, leak-free joints. They melt the pipe and fitting surfaces together with heating coils inside.
You must clean and scrape the pipe and fitting first. This step is important for a safe and long-lasting joint.
Always use the right tools and follow the instructions from the manufacturer. This helps you make a good fusion and stops leaks.
Make sure the pipes are lined up straight. Use clamps to hold them still during fusion for the best results.
Check and take care of your HDPE pipe system often. This keeps it leak-free and helps it last for many years.
You can use electrofusion couplings to join HDPE pipes tightly. These fittings have electric heating coils inside them. First, you clean and get the pipe ends ready. Next, you put the pipe ends into the coupling. Then, you use a control box to send power to the coils. The coils get hot and melt the pipe and fitting surfaces. The melted parts mix together and fill any small spaces. When the joint cools down, the materials stick together. This makes a strong and leak-proof joint. This method is good for small spaces or places where welding is hard. Electrofusion couplings help make safe pipe joints for water, gas, or chemicals.
Electrofusion couplings have many good points for HDPE pipes. They make a smooth joint that does not have weak spots. This lowers the chance of leaks. The joint is strong and can handle high pressure. It also spreads force evenly. You can use these couplings with many pipe sizes and in different places. They work in city, factory, or farm systems. The fusion process helps HDPE pipes last longer in tough places. It also saves time and money because it is fast and needs less gear. Joints that do not leak mean you fix pipes less often.
Tip: FusingX Butt Fusion Fittings use PE100 material and special heating parts. Their fusion indicators show when the joint is done right. These fittings work well in hard places and seal tightly.
Standard/Certification | Description |
|---|---|
ASTM F1055 | This is a rule for electrofusion fittings for polyethylene pipe. |
ASTM D2513 | This is a rule for polyethylene gas pipe, tubing, and fittings. |
ANSI/AWWA C901 & C906 | These are rules for polyethylene pipe and fittings for water and gas. |
FM Approvals | These are safety and performance certificates. |
NSF/ANSI 61 Section 4 | This is a certificate for drinking water system parts. |
ISO 9001 | This is a certificate for quality management systems. |
You can trust electrofusion couplings and FusingX Butt Fusion Fittings to meet strict rules. These products help you build safe, strong, and leak-free HDPE pipe systems.
You need the right tools to make sure your hdpe electrofusion fittings work well. Each tool helps you get a strong, leak-free pipe joint. Here is a list of what you should have before you start:
Electro Fusion Machine: This machine heats the hdpe electrofusion fittings and pipe ends. You must set it to the right temperature for your pipe.
Pipe Cutters: Use these to cut the pipe straight. A clean, even cut helps the joint stay strong.
Scraping Tool: This tool removes the top layer from the pipe. Scraping gets rid of oxidation and lets the pipe fuse better.
Cleaning Wipes or Cloths: You use these to clean the pipe after scraping. A clean pipe means a better bond.
Calibration Device: This checks that your electrofusion machine matches the fitting’s needs.
Safety Equipment: Wear gloves and goggles to protect yourself during the process.
Tip: Always check your tools before starting. Clean and sharp tools make pipe preparation easier and safer.
Good surface preparation is the key to a strong joint. You must clean and scrape the pipe and hdpe electrofusion fittings carefully. Start by wiping the pipe to remove dirt and grease. Scraping comes next. Scraping takes off the thin, oxidized layer and exposes fresh pipe material. You should scrape about as much as two sheets of paper thick. This step is very important for hdpe electrofusion fittings.
Clean pipe ends stop weak spots from forming in the joint.
Scraping removes old, damaged pipe surfaces and helps the pipe melt and bond well.
Good surface preparation lowers the risk of leaks and keeps your system safe.
Clean and scraped pipe ends make the joint last longer and work better.
You must also check that your hdpe electrofusion fittings match your pipe’s grade and pressure rating. Use only fittings made for your pipe type. If you join pipes with different pressure ratings, use special transition fittings. Always follow the manufacturer’s instructions for alignment and welding. This keeps your pipe system strong and leak-free.
Note: Careful pipe preparation and surface preparation give you peace of mind. You know your hdpe electrofusion fittings will hold up for years.
You must start the steps for coupling electrofusion by making sure your pipe ends line up perfectly. Place the pipes on a flat surface. Check that both ends are clean and smooth. If you work with large-diameter pipe, use alignment clamps. These clamps do not force the pipe into place. They hold the pipe steady and keep it from moving during fusion. You should bring the pipe ends together without stress. Sometimes, you need to dig around the pipe or use blocks to help with alignment. This prevents any pulling or bending that could hurt the fusion zone.
Mechanical restraints help protect the pipe during pulling or moving. They act as weak links. If you pull too hard, the restraint breaks before the pipe does. This lets the pipe relax and return to its normal shape before you start fusion. If you skip this step, the pipe might shrink a little, and the fusion zone could get weak. Always make sure the pipe is relaxed and stress-free before you begin heating and fusion. This helps you get a strong, leak-proof electrofusion jointing, especially for big pipes.
Tip: For best results, use alignment clamps and mechanical restraints on every large-diameter HDPE pipe. This keeps your fusion zone safe and your joint strong.
Once you have the pipes aligned and clamped, you can start the fusion process. Insert the pipe ends into the electrofusion coupling. Make sure the pipes go in all the way to the marked depth. Connect the electrofusion control box to the fitting. The control box sends electricity to the built-in coils. These coils heat up and melt the inside of the coupling and the outside of the pipe at the same time.
You must follow the manufacturer's instructions for time and temperature. Each type of pipe and fitting may need a different setting. If you use the wrong time or temperature, the fusion may not work well. Watch for the fusion indicators on the coupling. These show you when the fusion is complete. Do not move the pipe or the coupling during this step. Movement can cause a weak spot or a leak.
Note: FusingX provides technical datasheets and expert support. Always check these resources to make sure you use the right settings for your HDPE system.
After the fusion process, let the joint cool down. Do not touch or move the pipe during cooling. The cooling time depends on the pipe size and the manufacturer's guidelines. Cooling lets the melted material harden and form a strong bond. If you rush this step, the joint may not be as strong or leak-free.
Once the joint has cooled, inspect it carefully. Look for signs of a good fusion, such as even bead formation and no gaps. Check the fusion indicators if your coupling has them. You can also use a gauge or a simple visual check. If you see any problems, do not use the pipe until you fix the joint.
Tip: Regular inspection after cooling helps you catch problems early. This keeps your HDPE pipe system safe and reliable for many years.
You want your pipe system to work for a long time. It should not leak. Many people make mistakes when they install hdpe electrofusion fittings. You can stop these problems if you know what to look for.
If you do not follow the maker’s rules, joints can be weak or leak. Always read and use the right steps for your hdpe electrofusion fittings.
Pipes that are not lined up can cause leaks. They also add stress. Use alignment clamps to keep pipes straight.
If you skip checks or tests, you might miss problems. Test your pipe joints before you use the system.

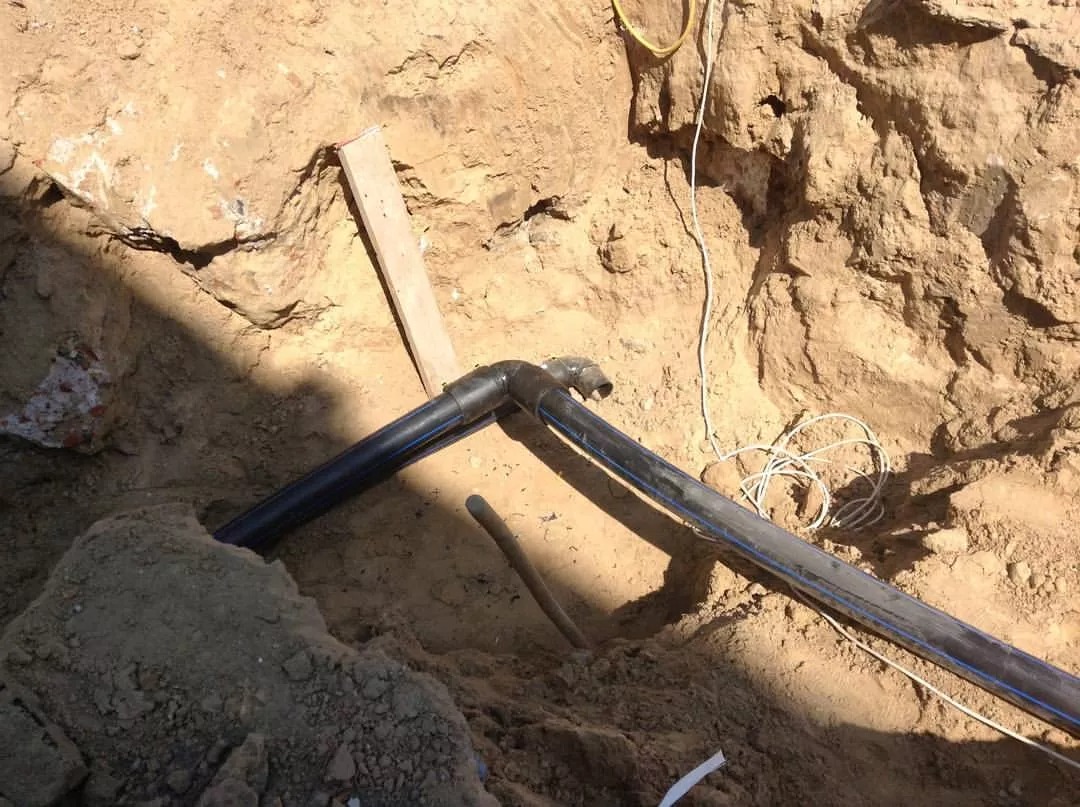

If the pipe does not sit on smooth ground, it can bend and leak. Use sand or small stones to hold the pipe up.
If the trench is too small or dirty, you can hurt the pipe. It also makes joining hard. Clean and make the trench wider before you put in pipes.
If you do not pack the dirt around the pipe, it can move and break. Press the dirt down to keep your pipe safe.
Pipes can get weak from sun, chemicals, or hits. Use UV-resistant covers or cases if you need them.
Tip: Plan well and check your work often. This helps you stop most mistakes. Your pipe system will stay strong and safe.
If you see problems with your electrofusion joints, you can fix them with easy steps. Use this table to find common problems and how to solve them:
Issue Category | Common Problems | Troubleshooting Steps |
|---|---|---|
Pipeline Alignment | Misaligned pipe ends | Use alignment clamps and check positions often |
Equipment Malfunctions | Cracks, incomplete fusion | Inspect machines and cables before use |
Weld Quality | Weak joints, dirty pipe ends | Clean pipe ends and set machine parameters |
Environmental Factors | Temperature or moisture issues | Control work area and follow guidelines |
Training and Standards | Lack of skill or ignoring rules | Train regularly and follow all instructions |
Always clean the pipe ends before you weld. Keep the work area at the right temperature and dry. Let the pipe cool by itself after fusion. Do not move or bend the pipe while it cools. Look at the weld and test it for leaks. If you find a problem, fix or redo the joint before you use the pipe.
Note: Good hdpe electrofusion fittings need careful work, regular tests, and the right protection. You can stop most problems if you follow these steps.
You want your pipe system to stay leak-free for many years. Regular inspection helps you catch problems early. Start by looking at your pipe joints every few months. Check for cracks, leaks, or any signs of wear. If you see water or gas near a joint, inspect it right away.
Follow these steps for a good inspection:
Clean the pipe surface before you look for damage. Dirt can hide small cracks or leaks.
Use your eyes and hands to check for rough spots, discoloration, or bulges.
Measure the weld bead with a gauge. Make sure it matches the size in the instructions.
If you have special tools, use them to check inside the joint for hidden flaws.
Watch the area around the pipe for changes in pressure or temperature. These changes can show a problem with the joint.
Tip: Write down your inspection results. This helps you track changes over time and plan repairs before leaks happen.
You can help your hdpe pipe system last for decades with simple care. Industry studies show that properly installed and maintained hdpe pipes and fittings can last 50 to 100 years. This long life comes from the strong, flexible, and chemical-resistant material.
To keep your pipe joints strong:
Always follow the right steps when you install new joints. Clean and align the pipe ends before welding.
Use trained workers and the correct tools for every job.
Check the pressure and temperature in your system often. High pressure or heat can stress the joints.
Protect the pipe from heavy loads or sharp objects that could cause damage.
Plan for a full inspection once a year. Look for signs of wear, leaks, or movement in the pipe.
The electrofusion process creates a sealed, permanent joint. You do not need to repair or replace these joints often. Good care means fewer problems and less work for you in the future.
Note: A well-maintained pipe system saves you time and money. You get peace of mind knowing your system will work safely for many years.
If you want your hdpe pipe connections to not leak, follow each step. Clean your pipes and check the fittings before you start. Use the correct tools for the job. Electrofusion couplings make joints that are strong and last a long time. These joints stop leaks and work well in hard places. Always read the manufacturer's rules and ask experts if you need help. Hdpe systems are tough and can last for many years. Your pipeline will stay safe and work well for a long time.
Tip: If you install pipes carefully and check them often, your hdpe pipe system will last longer.
You can check the fusion indicators on the coupling. Look for even bead formation around the joint. You should also test the joint for leaks before using the pipe system.
Yes, you can use electrofusion couplings for water and gas pipes. These fittings work well in many systems. Always check that your fittings meet the right standards for your project.
If you find a leak, stop using the pipe. Inspect the joint for problems like dirt or poor fusion. You may need to cut out the bad joint and install a new coupling.
Properly installed HDPE electrofusion joints can last over 50 years. Regular inspection and care help you get the longest life from your pipe system.
Yes, you should get training before installing electrofusion couplings. Training helps you use the tools correctly and follow all safety steps. This gives you better, leak-free joints.
