How To Choose The Best PE Pipe Fittings for Your Project?

Choosing the right PE pipe fittings is very important. It helps your project work well and stay safe. You need fittings that fit your pipe type and material. They must also handle the right pressure. HDPE and PE100 are popular today. They are strong and do not rust. XFusing is a trusted brand for these products. Many big projects use their fittings. You see them in water, gas, and factory pipes. When picking fittings, check for these standards:

• ISO 4427 for water supply

• ISO 4437 for gas distribution

• EN 12201 and EN 1555 for European piping

• NSF International and ASTM International certifications for quality and safety

These standards help make sure your pipes are safe and good for 2025 and later.

Key Takeaways

• Pick PE pipe fittings that fit your pipe type and size. Make sure they can handle the pressure you need. This helps keep your system safe and strong.

• Use fittings that follow rules like ISO and ASTM. These rules help make sure the fittings are good quality and last a long time.

• Choose the right fitting type for your project. You can use butt fusion, electrofusion, or compression. The best type depends on your project and pipe size.

• Get pipes and fittings ready before you join them. Follow the right steps to put them together. This helps stop leaks and weak spots.

• Check your PE pipe fittings often. Fix problems early to make your piping system last longer.

PE Pipe Fittings Overview

What Are PE Pipe Fittings

You use pe pipe fittings to connect pipes or change their direction. These fittings help make hdpe piping systems strong for water, gas, and factories. XFusing makes pe pipe fittings that are easy to put in and last a long time. You can find these fittings in hdpe pipes for city water, gas lines, and sewage plants. The fittings come in many shapes like elbows, tees, reducers, and end caps. You pick the right fitting by looking at your project and the hdpe pipes you have.

XFusing is special because they focus on hdpe and pe100 pipe fittings. Their products do not rust and can handle high pressure. You get good quality because they check their products carefully and use new machines. XFusing’s fittings meet important rules like ISO4427, ASTM D3261, and EN. These rules help keep your pipes safe and working well.

Tip: Always look at the rules before you pick pe pipe fittings. This helps stop leaks or pressure problems.

HDPE Pipes and PE100

Hdpe pipes are made from high-density polyethylene. You see hdpe pipes in many projects because they last long and do not get damaged by chemicals. Pe100 pipe fittings use a better kind of polyethylene. This means they can handle more pressure and last longer. Pe100 fittings have thinner walls but are still strong like thick hdpe pipes. Pe100 fittings also do not crack or break easily.

Here is a table that shows how pe100 and hdpe pipe fittings are different:

You pick pe100 fittings for hdpe pipes when you need strong pipes that last and follow the rules. XFusing knows a lot about hdpe and pe100 pipe fittings. Their products help you build safe hdpe piping for water, gas, and factories all over the world.

Types of PE Pipe Fittings

When you use hdpe pipes, you must pick the right fittings. XFusing has many kinds of pe pipe fittings. Each kind helps connect pipes for water, gas, or other jobs. You can find these fittings in city water pipes, gas lines, factories, farms, and even on boats.

Here is a table that lists the main types of pe pipe fittings and where you use them:

Butt Fusion Fittings

Butt fusion fittings join hdpe pipes by heating and pressing the ends. This makes a strong, leak-free joint. You see butt fusion fittings in water and gas pipes. These fittings are good for big hdpe pipes in cities and factories. XFusing makes elbows, tees, reducers, and flange adapters for butt fusion. You need special tools to put them in, but the joint is strong for high-pressure pipes.

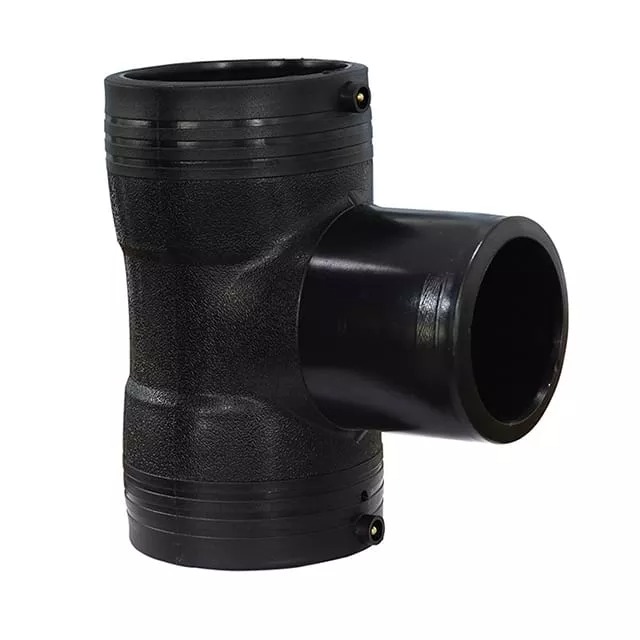

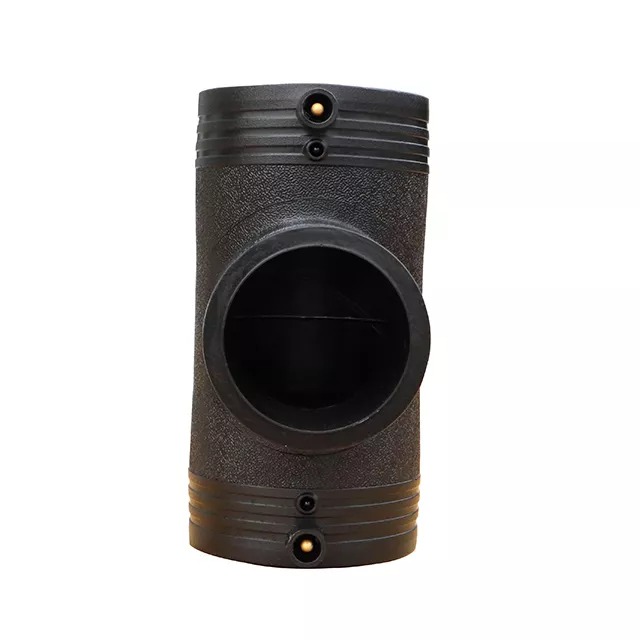

PE Electrofusion Pipe Fittings

Pe electrofusion pipe fittings have wires inside to melt and join the fitting to the hdpe pipe. You clean the pipe, put it in the fitting, and use electricity. The fitting melts and sticks to the pipe. Electrofusion fittings make a strong, leak-proof joint. You use pe electrofusion pipe fittings in gas lines, water pipes, and places that need extra safety. XFusing has couplers, elbows, tees, and reducers for electrofusion. These fittings are good in small spaces and for fixing pipes. You can trust pe electrofusion pipe fittings for hdpe pipes in city water and gas lines.

Tip: Always check that your hdpe pipes and pe electrofusion pipe fittings are the same size and material before you start.

Compression Fittings

Compression fittings let you join hdpe pipes fast. You do not need heat or special tools. You just tighten nuts and rings to seal the pipe. These fittings are best for low-pressure water and gas pipes. You see compression fittings on farms, in gardens, and for short-term water pipes. XFusing makes compression couplings and adapters that are easy to use. You can take these fittings apart and use them again if you want.

Threaded and Specialty Fittings

Threaded fittings let you screw hdpe pipes together. You use sealing paste to stop leaks. These fittings are good for low-pressure water and small gas pipes. XFusing also makes specialty fittings like saddles and flanged adapters. You use these for boat pipes, equipment links, and special projects. Specialty fittings help you fix tricky pipe problems in water, gas, and factory systems.

Note: XFusing’s many hdpe pipe fittings give you choices for every job, from water and gas to boats and factories.

Selection Factors

Material Compatibility

You must always check material compatibility when you choose fittings for hdpe pipes. The fitting material should match the pipe type. For most modern projects, you use PE100 fittings with hdpe pipes. This choice gives you high sealing and high pressure resistance. You need to think about your project’s needs, such as water supply, gas, or industrial use. Each application has different requirements for pressure, temperature, and the type of fluid that flows through the pipes. PE100 fittings work well because they have strong material properties and last a long time. You also need to make sure the fittings work with your joining method, like butt fusion or electrofusion. XFusing’s product guides help you match the right fittings to your hdpe pipes. Always check that the fittings meet international standards for safety and quality.

Size and SDR

When you select fittings for hdpe pipes, you must pay close attention to size and SDR. SDR stands for Standard Dimension Ratio. It tells you how thick the pipe wall is compared to its outside diameter. A lower SDR means a thicker wall, which gives better pressure resistance. The outside diameter of hdpe pipes stays the same, but the wall thickness changes with SDR. You need fittings that match both the outside diameter and the wall thickness of your pipes. This ensures a good seal and keeps your system safe. For example, if you use an SDR 11 pipe with a 110 mm outside diameter, the wall thickness is about 10 mm. The fitting must fit these exact measurements. Good design considerations help you avoid leaks and keep your system strong.

Tip: Always use a fitting that matches your pipe’s SDR and size. This keeps your hdpe piping system safe and efficient.

Pressure Rating (PN)

Pressure rating, or PN, is another key factor in specifying hdpe fittings. PN tells you the maximum pressure the pipes and fittings can handle at 20°C. You must match the PN of your fittings to the PN of your hdpe pipes. If you use a fitting with a lower PN than your pipe, you risk leaks or bursts. Good design means checking both SDR and PN together. This helps you build a system that works safely under real conditions. XFusing’s fittings come with clear PN ratings, so you can choose the right one for your project. Always consider the working pressure and the temperature of your system when you select fittings.

Application Needs

Every project has different needs. You must think about what your system will carry—water, gas, chemicals, or sewage. Each fluid has its own demands on the pipes and fittings. For example, hdpe pipes for gas need special fittings with high sealing and high pressure resistance. Water supply systems may need fittings that resist corrosion and last for many years. You also need to think about temperature. Most hdpe pipes and fittings work best below 100°F (38°C) when under pressure. If your system runs hotter, you must check if the fitting material can handle it. XFusing offers fittings for many uses, from city water to marine projects. Their product guides help you pick the right fittings for your design.

Note: Always check the temperature and pressure limits for your fittings. This protects your system and keeps it running safely.

Standards and Certifications

You must always check that your hdpe pipes and fittings meet the right standards. Standards like ISO 4427, ASTM D3261, and EN 12201 show that the products are safe and high quality. These standards cover design, material properties, and testing. XFusing’s hdpe fittings meet these global standards, so you can trust their safety and performance. When you follow these rules, you make sure your project passes inspections and lasts a long time. Good design considerations always include checking for certifications and third-party testing. This step helps you avoid problems and keeps your system reliable.

XFusing provides detailed product guides and support to help you choose fittings that meet all standards and design needs.

How to Choose PE Electrofusion Pipe Fittings?

Compatibility Checks

When you want to pick pe electrofusion pipe fittings, you must check if they fit your pipes and project. Electrofusion works best with the right size and material. You want joints that are strong and do not leak. These joints should last for a long time. Here are the main steps you need to follow:

1. Check Material Compatibility
   You need to know what your pipes are made of. Most pipes use polyethylene (PE), but some use other plastics like PVC. Pick electrofusion fittings made from the same material as your pipes. XFusing has certified fittings for PE100 and HDPE pipes.

2. Review Physical and Chemical Properties
   Look at how strong and flexible the fittings are. Check if they resist chemicals and temperature changes. Electrofusion fittings must work in tough places. XFusing’s PE100 fittings do not rust and stay strong in harsh places.

3. Match Pipe and Fitting Sizes
   Measure the outside of your pipes. Make sure the electrofusion fittings fit exactly. If the sizes do not match, you can get leaks or loose joints.

4. Check Pressure Ratings
   Find out the pressure rating of your pipes. Pick electrofusion fittings with the same or higher rating. This keeps your system safe.

5. Consider Application Needs
   Think about what will flow in your pipes. Water, gas, and chemicals need different sealing and resistance. XFusing’s pe electrofusion pipe fittings work for water, gas, and chemical waste.

6. Inspect and Prepare Before Welding
   Before welding, check the fittings for the right specs. Clean the pipe and fitting to remove dirt and oil. Make sure your welding tools are ready and set up right.

Tip: Use XFusing’s product guides to help you pick the right electrofusion fittings. Their team can answer questions about what fits and what rules to follow.

Installation Methods

Electrofusion installation methods help you make strong joints. You must follow each step to stop leaks and weak spots. Here is a simple guide for installing pe electrofusion pipe fittings:

1. Select Certified Materials
   Use electrofusion fittings and pipes that are tested and safe. XFusing’s products meet world standards and work well in hard jobs.

2. Match Sizes Precisely
   Make sure the pipe and fitting sizes are the same. This stops leaks and gaps during electrofusion.

3. Prepare Surfaces
   Clean the pipe and fitting. Remove sand, water, and oil. Use the right tools to peel off the old layer. Clean surfaces help the electrofusion work better.

4. Calibrate Welding Equipment
   Set your welding machine to the right settings. XFusing says to check your machine every year.

5. Align and Clamp Pipes
   Line up the pipes and fittings. Use clamps to hold them still during electrofusion. Good alignment stops bad joints.

6. Follow Electrofusion Instructions
   Read the instructions for heating and joining. Watch the temperature and time. XFusing gives guides and videos for these steps.

7. Allow Cooling Time
   After welding, let the joint cool without moving it. This makes the joint strong.

8. Test for Leaks and Pressure
   When the joint is cool, test for leaks and pressure. Make sure the joint is strong before you cover the pipes.

Note: Training is important. You should learn how to use the tools, follow safety steps, and spot problems. XFusing gives support and training to help you install electrofusion fittings the right way.

Electrofusion works well because PE100 and HDPE are strong, resist chemicals, and bend without breaking. These features help the fittings handle ground movement and damage. You get a safe and long-lasting system when you follow the right steps and use good products.

HDPE Pipes Applications

Industrial Use

Factories and plants use hdpe pipes a lot. These pipes move water, gas, chemicals, and air. XFusing’s hdpe fittings work well in hard places like mines. You can use hdpe pipes for iron ore slurry and boiler ash. They also carry sand in mining jobs. The pipes do not rust or get damaged by chemicals. Electrofusion fittings make strong joints that last long. Smart fittings from XFusing can check pressure and temperature. You find problems early and keep your pipes safe. Hdpe pipes bend and do not break when the ground moves. This keeps your system strong for many years.

Municipal Projects

Cities use hdpe pipes for water and gas. These pipes bring water to homes and stores. They also carry gas for heating and cooking. XFusing’s hdpe fittings help make water and gas lines that do not leak. The pipes do not rust or get blocked by minerals. You get clean water and safe gas for everyone. HDPE pipes work well in sewage systems too. They carry waste water and sewage without leaking. Hdpe pipes last a long time, so you do not need to change them often. This saves money and helps the city stay strong.

• HDPE pipes help bring drinking water and water mains.

• You use hdpe pipes for gas and sewage treatment.

• XFusing’s fittings keep your pipes safe and strong.

• The pipes do not rust or get damaged by chemicals.

• You get fewer leaks and spend less on repairs.

Agricultural and Marine

Farmers use hdpe pipes for watering crops. You see these pipes in drip systems and tube wells. They also help spray pesticides. HDPE pipes bring water right to the roots. This saves water and helps plants grow better. XFusing’s hdpe fittings make it easy to set up and change pipes. In marine jobs, you use hdpe pipes for saltwater and underwater work. The pipes do not get damaged by saltwater or sunlight. You build fish cages and ocean cleanup systems with hdpe pipes. Hdpe pipes last long and bend easily. This helps farms and marine projects protect nature. You get strong pipes that help the environment.

Tip: XFusing’s hdpe pipes and fittings help you build strong and flexible piping. You can use them for water, gas, sewage, mining, and marine jobs. Your system will last for many years.

Installation Best Practices

Preparation

You must get ready before you put in PE pipe fittings. Good prep stops leaks and other problems later. First, pick the right fittings for your pipes. Check the pipe size, wall thickness, and how they connect. Gather all your tools. You need alcohol, tape, scraper, dust-free paper, gloves, scissors, markers, scanner, and an electrofusion welder. Clean the pipe with dust-free paper and alcohol. Look at the electrofusion fittings for any damage. Mark how deep the pipe goes into the fitting. Draw cross lines to help scrape off the oxide layer evenly. Use a scraper to take off the oxide layer slowly and carefully. Do not use angle grinders because they can hurt the pipes. Check the scraped part to make sure all oxide is gone. Make sure you have all parts ready before you start. Put the pipe end into the fitting and line up the marks. Clean the socket area of both the pipe and fitting with alcohol. Tighten the screws and check the gap is 0.3mm or less. Make sure your welding machine works well. Scan the fitting barcode and set the weld settings. Weld the joint and watch for the middle cap to pop up. This shows the weld is done. Let the joint cool and do not touch or move the pipes while cooling. These steps follow XFusing’s guides and videos.

Tip: Getting ready the right way helps you make strong and safe pipe systems.

Joining Techniques

There are different ways to join PE pipes. Each way works for different jobs and places. Butt fusion heats pipe ends and presses them together. This makes one strong joint. It is best for big pipes. Electrofusion uses fittings with heaters inside. You use electricity to heat them and make tight joints. Electrofusion works for many pipe sizes and is good in small spaces. Socket fusion heats the pipe outside and fitting inside. You join them fast after heating. This way is good for small pipes. Mechanical fittings use compression or push-on parts. You do not need heat or power, so it is quick and easy.

Always clean the pipe ends and fittings before joining. Use the right tools and keep the heat steady. Line up the pipes straight and let the joints cool for the right time. Follow XFusing’s steps and think about your project needs. The right welding machine and method help your pipes last longer.

Note: Electrofusion is a great choice for many jobs. It works well in tight spots and gives strong joints.

Testing and Inspection

After you put in PE pipe fittings, you must test and check the system. These steps make sure your pipes do not leak and are strong. Start with deflection testing. This checks if pipes can bend without breaking. Joint testing is needed for gravity sewer pipes. You use air or water to check for leaks at the joints. Hydrostatic pressure testing fills the pipes with water. Take out the air and pump water to a set pressure. Hold this pressure for up to three hours and look for leaks. Pneumatic leak testing uses air instead of water. Fill the pipes with air in steps and check for leaks each time. If you find leaks, let out the air and fix the joints. These tests help you meet project rules and design needs.

Tip: Always check and test your pipes after you finish. This step makes sure your system is safe and works well.

Common Mistakes

When you use PE pipe fittings, you want your system to work well and stay safe. Many people make mistakes that cause problems. If you know these mistakes, you can avoid trouble and keep your project running smoothly.

Sizing Errors

You might pick a fitting that is not the right size. This can make leaks or lower water flow. Always measure the pipe diameter with care. Make sure the fitting matches the pipe size and connection type, like socket fusion or electrofusion. If you do not check, your system may not work right.

• Some sizing mistakes are:

• Picking the wrong fitting size

• Using the wrong connection type

• Not measuring pipe diameter well

• Not following manufacturer rules

Tip: Always read the manufacturer’s instructions and check your measurements before you install anything.

Pressure Mismatches

If you pick fittings with the wrong pressure rating, you can get leaks or bursts. Choose fittings with pressure ratings at least 20% higher than your system’s top pressure. Match the fitting material to the pipe material to stop rust and leaks. Use connection types that work for high pressure, like welded or grooved fittings. Look at size charts to make sure everything fits. Pick fittings that meet standards like ASTM or ANSI for extra safety.

1. Pick fittings with higher pressure ratings.

2. Match pipe and fitting materials.

3. Use strong connection types for high pressure.

4. Check size charts for perfect fits.

5. Pick fittings that meet known standards.

Material Incompatibility

If you use the wrong materials together, you can get leaks and damage. Mixing thermoplastics and metals can make joints weak. These weak spots may leak, wear out early, or break. Changes in temperature make things worse. You can use expansion loops or joints to help pipes move and stay safe. Always check that your fittings and pipes work together to keep your system strong.

• Problems from using the wrong materials:

• Leaks at joints

• Early wear

• Broken pipes

• Damage from temperature changes

Poor Installation

Bad installation can ruin good pipes and fittings. Turn off the water before you start. Dig slowly so you do not hurt the pipe. Cut pipes cleanly with the right tools. Push fittings in all the way and use clamps to hold them tight. Always check for leaks before you cover the pipes. Use good trenching and bedding to support the pipe. Follow joining steps like butt fusion or electrofusion for tight joints. Test for leaks and pressure before you finish. These steps help keep your system safe and working well.

Note: For hard projects, ask experts or use guides. This helps your system meet safety and quality rules.

Maintenance and Longevity

Routine Checks

You need to check your PE pipe fittings often. This helps you find small problems before they get worse. Here are some easy steps you can follow: Look at the fittings for cracks, leaks, or color changes. Clean off dirt, dust, or chemicals from the fittings. Flush the pipes once a year to keep water moving and stop clogs. Use pressure tests and special scans to find hidden problems inside the pipes. Change any broken fittings right away. Fix loose joints before they leak. If your pipes are outside, add UV coatings or insulation. This keeps them safe from sun and bad weather. Always use good ways to put in your fittings. This makes them last longer and work better. XFusing’s PE pipe fittings are made to last a long time. They can work for more than 50 years if you take care of them. Doing these checks saves money and keeps your system safe.

Tip: Make a checklist for your checks. This helps you remember every step and keeps your pipes working well.

Leak Prevention

You can make your PE pipe fittings last longer by stopping leaks early. Leak-free pipes are important for water, gas, and factories. HDPE pipes use special welded joints that do not leak. These joints are as strong as the pipe. Cities with HDPE pipes lose less water than cities with PVC pipes. This saves money and helps the planet.

Here is a table that shows how stopping leaks helps your pipes last:

XFusing’s fittings give you strong, safe joints for any job. You get less leaks and spend less on repairs. Good leak prevention helps your PE pipe fittings last for many years.

Note: Always check your joints and fittings after you put them in. Fixing leaks early keeps your system working well.

You can make a strong hdpe project if you follow some steps. First, pick the right hdpe pipe material for your job. Always check the pressure rating and make sure sizes match. Hdpe is good for water and gas because it does not rust. Pick electrofusion or butt fusion fittings for tight, safe joints. Clean the pipes before joining them and check them often for problems. XFusing has hdpe pipes and fittings for water, gas, and factories. For big jobs, use guides, online classes, and CAD drawings to help you plan and build. You can ask XFusing for help and get good hdpe products.

Tip: For big or tricky hdpe pipe projects, use online libraries, webinars, and CAD drawings to help you design better.

FAQ

What is the difference between butt fusion and electrofusion fittings?

Butt fusion fittings join pipes by heating and pressing the ends together. Electrofusion fittings use built-in wires to melt and connect the pipe and fitting. Both methods create strong, leak-proof joints. You choose based on your project’s needs and space.

How do I know which pressure rating (PN) to choose?

You should check your system’s maximum working pressure. Pick fittings with a PN rating equal to or higher than your pipe’s pressure. This keeps your system safe and helps prevent leaks or bursts.

Can I use PE pipe fittings for both water and gas lines?

Yes, you can use PE pipe fittings for water and gas. Always check the product label and standards. XFusing’s fittings meet strict rules for both uses. This ensures safety and long-lasting performance.

How often should I inspect my PE pipe fittings?

You should inspect your fittings at least once a year. Look for cracks, leaks, or color changes. Regular checks help you find problems early and keep your system working well.

Do I need special tools to install PE electrofusion fittings?

Yes, you need an electrofusion welding machine and pipe preparation tools. These tools help you clean, align, and weld the fittings correctly. Using the right tools ensures strong, leak-free joints.
