Top Tips for Installing PE Pipe Fittings Successfully

You want your PE pipe fittings to last a long time, so installing them the right way is important. Mistakes like not lining up pipes, using the wrong sizes, or being too rough can cause leaks and weak spots. If you choose XFusing, you get strong and tough polyethylene pipe fittings. HDPE fittings from XFusing do not rust, last for many years, and help keep the environment clean. These fittings are light, so PE pipe is easy to move and use. HDPE is bendy, so it does not break easily. No matter if you work on a big city job or a small farm project, XFusing’s PE pipe fittings help you do the job right the first time.

Key Takeaways

• Get your site ready by looking at the soil. Check the weather and look for underground utilities. This helps you avoid problems when you install.

• Store PE pipes the right way so they do not get damaged. Use flat surfaces and stack pipes in a pyramid shape. Protect the pipes from sunlight with UV covers.

• Cut the ends of the pipe so they are smooth. Join fittings with the correct method like butt fusion or electrofusion. This makes strong connections that do not leak.

• Line up the pipes carefully and give them good support. This stops leaks and keeps the system steady for a long time.

• Test your system with pressure checks and leak inspections after you finish. This helps you find problems early and makes sure your system works well for years.

Site Prep

Area Assessment

You want your project to start strong, so focus on site preparation before you even touch the pipes. Walk around the area and look for anything that might affect your work. Check the soil type and see if it’s rocky, sandy, or clay. Each soil type changes how you dig and support the pipes. Think about the weather, too. Heavy rain or extreme heat can slow down your site preparation and affect the pipes’ performance.

Tip: Always check for underground utilities before you dig. You don’t want to hit a water line or electrical cable by mistake.

Look at the materials you plan to use for trench development. Gravel and sand are common, but they have different impacts on the environment. Sand, for example, makes up most of the climate impact when you use it for bedding. Diesel fuel for excavation also adds to your project’s footprint. If you care about the environment, choose your materials wisely during site preparation. The type of trench you pick—open-cut or trenchless—also changes how much you disturb the area and how you install the pipes. Soil composition and the lifespan of your pipes matter, too. Good planning now means fewer replacements later.

Trench Preparation

Once you finish your area assessment, move on to trench preparation. The right trench keeps your pipes safe and working for years. Start by measuring the trench width. Make sure it’s wide enough for the pipes, joint assembly, and for you to move around. For example, a 3-inch pipe needs about 27 inches of trench width, while a 60-inch pipe needs up to 84 inches. Always follow the guidelines for your pipe size.

Pack the trench bottom with compacted soil or aggregate. This step gives your pipes a stable base. Shape the bedding so the pipes sit snugly and don’t shift. Use granular materials with small rock fragments—no bigger than 1.5 inches—to avoid damaging the pipes. When you lay the pipes, make sure the joints are soil-tight and, if needed, wrap them with geotextile fabric. Safety matters, too. If your trench is deeper than 5 feet, use shoring or sloping to keep the walls from caving in.

• Double-check the compaction of your bedding and backfill. Aim for 80-90% Standard Proctor density.

• Dig bell holes at each joint. This makes it easier to connect the pipes and keeps them in line.

Note: Careful site preparation and trench work help your pipes last longer and prevent leaks. Take your time with these steps for a smoother installation.

Pipe Handling

Storage

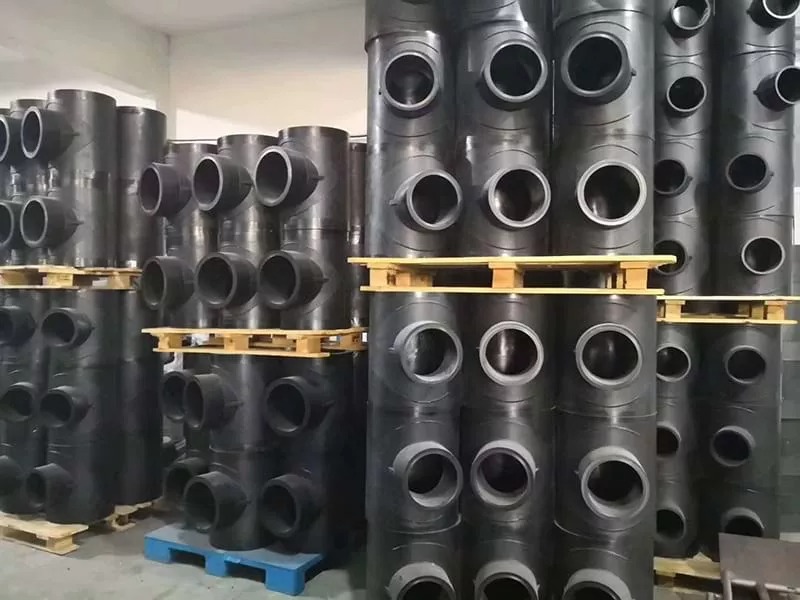

You want your pipes to stay in top shape before installation. Good storage keeps hdpe pipes safe from damage and makes your job easier. Always choose a flat, level spot for storing pipes. Remove rocks, sticks, and trash from the area. Stack pipes in a pyramid shape, with the thickest pipes at the bottom. This helps prevent rolling and keeps everything stable. If you store pipes outside, cover them with tarps to protect them from sunlight. UV rays can weaken polyethylene over time. Use clean wood or dunnage between layers so pipes don’t get scratched or dented. Secure stacks with straps or chains, especially if you expect wind or movement nearby.

Tip: Park delivery trucks on level ground and lock the wheels before unloading pipes. This keeps everyone safe and prevents pipes from shifting.

Here’s a quick table to help you remember the best ways to store hdpe and polyethylene pipe:

Inspection

Before you install any hdpe pipes, take time to inspect them. You want to catch problems early so your project runs smoothly. Start by checking every pipe for cracks, holes, or dents. Look for foreign materials inside or outside the pipes. Make sure the ends are cut square and clean. If you see any defects, set those pipes aside. Check that the pipes match your packing list and have the right markings, like the manufacturer’s name and size. The color and density should look even along the whole length. Measure the inside diameter and wall thickness to make sure they meet the standards. If you find that 10% or more of the pipes have issues, reject the whole batch.

For fittings and couplings, confirm they are made from the same hdpe or polyethylene as your pipes. The inside diameter should not shrink by more than half an inch. If you use split couplings, make sure they grip at least two full corrugations. The length of each fitting should match the manufacturer’s specs within half an inch. You want every part to fit perfectly so your polyethylene pipe system works as it should.

Note: Always wear gloves, safety glasses, and sturdy shoes when handling hdpe pipes. This keeps you safe from sharp edges and heavy loads.

Cutting & Joining

Getting the right cut and joint is key for a strong PE pipe system. You want every connection to be leak-proof and last for years. XFusing offers a full range of PE pipe fittings, including butt fusion, electrofusion, compression, and threaded types. Let’s walk through the installation process step by step.

Cutting Tools

You need a clean, straight cut before joining pipes. Ratchet plastic pipe cutters work well for most jobs. They give you precise cuts and reduce jagged edges. You use less effort compared to old-style cutters, and they are easy to handle. For big pipes, a PE Pipe Cutter is best. It cuts thick walls fast and collects shavings, so you keep your work area clean. This tool is safe and works in tight spaces. You get a smooth edge, which helps with joining later.

Tip: Always clean pipe ends after cutting. Remove dirt, grease, and plastic shavings for a better seal.

Butt Fusion

Butt fusion is a popular way to join PE pipe fittings. You start by cleaning the pipe ends with alcohol. Use a rotating cutter to trim and square the ends. Heat both ends with a plate until they melt. Press them together under pressure and let them cool. This makes a strong, seamless joint. You should follow the manufacturer’s installation guidelines and ASTM D2774 for best results. Adjust heating times if it’s cold or windy outside. Always inspect the joint after cooling.

Electrofusion

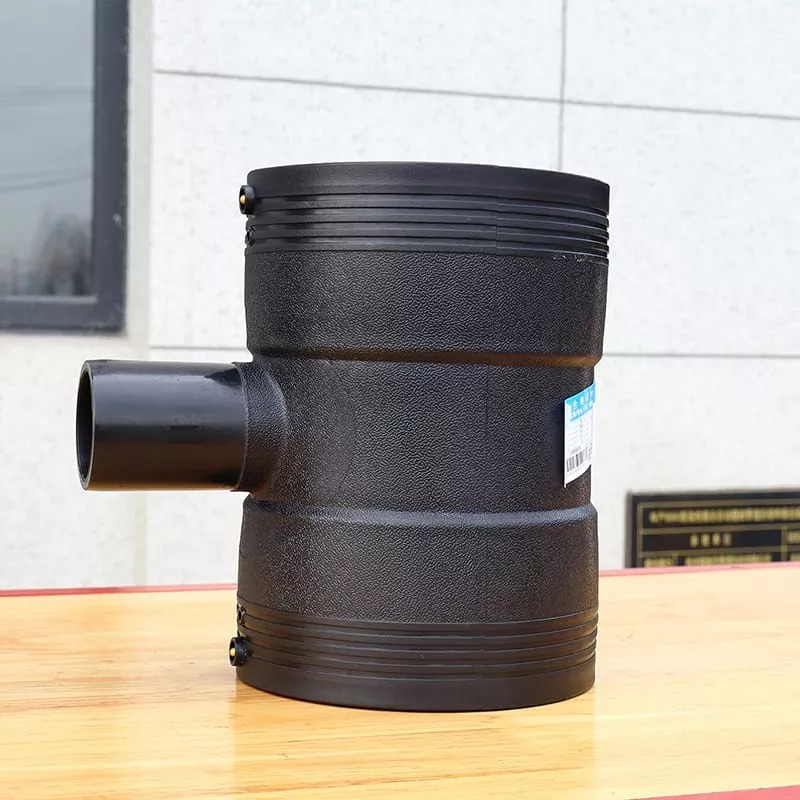

Electrofusion uses special fittings with wires inside. You place the pipe and fitting together, then use a machine to heat the wires. This melts the inside surface and joins the pipe. Electrofusion is great for small diameters and repairs. It works well in tight spots. The process is automated, so you get precise control over time and temperature. Check the table below to see how electrofusion compares to butt fusion:

Compression Fittings

Compression fittings make installation easy and quick. You pick the right size for your pipe. Clean the ends well. Use a dab of Teflon paste on the ferrule. Hand-tighten first, then use a wrench for a snug fit. Don’t over-tighten. If you see leaks, tighten a bit more. Use two wrenches to keep the pipe straight. Gas compression fittings work the same way and are perfect for gas lines. Always test for leaks after installation.

Note: Never mix compression parts from different brands. This can cause leaks and weak joints.

Threaded Connections

Threaded connections are simple but need care. Make sure threads are clean and deep enough. Don’t use too much force when tightening. Clean off sealing materials and use anti-corrosion paint if needed. Problems like cracks or leaks often come from poor threading or over-tightening. Always follow the installation guidelines for threaded PE pipe fittings.

You get the best results when you follow the right steps and use quality XFusing PE pipe fittings. Clean, prepare, and join pipes with care. Your system will stay strong and leak-free.

Pipe Installation

Alignment

Getting the alignment right is the first step to a leak-free system. You want your pipes to line up perfectly before you join them. Start by cleaning the pipe ends with alcohol-based cleaners. This removes dirt and helps you get a strong fusion. Use adjustable clamps that match your pipe size. These clamps hold the pipes steady and stop them from moving while you work. If you use flanges, center the gaskets and line up the bolt holes. Tighten bolts in a cross pattern so the flange stays flat. Always check your work with a straightedge or laser level. If something looks off, adjust the pipes before you finish the joint. Pressure testing after installation helps you spot leaks early.

Tip: Careful alignment means fewer leaks and longer-lasting hdpe pipes.

Quick Steps for Alignment:

1. Clean pipe ends with alcohol-based cleaner.

2. Use clamps to hold pipes steady.

3. Center gaskets and align bolt holes.

4. Tighten bolts evenly.

5. Check straightness with a level.

6. Adjust pipes if needed.

7. Test for leaks after joining.

Support

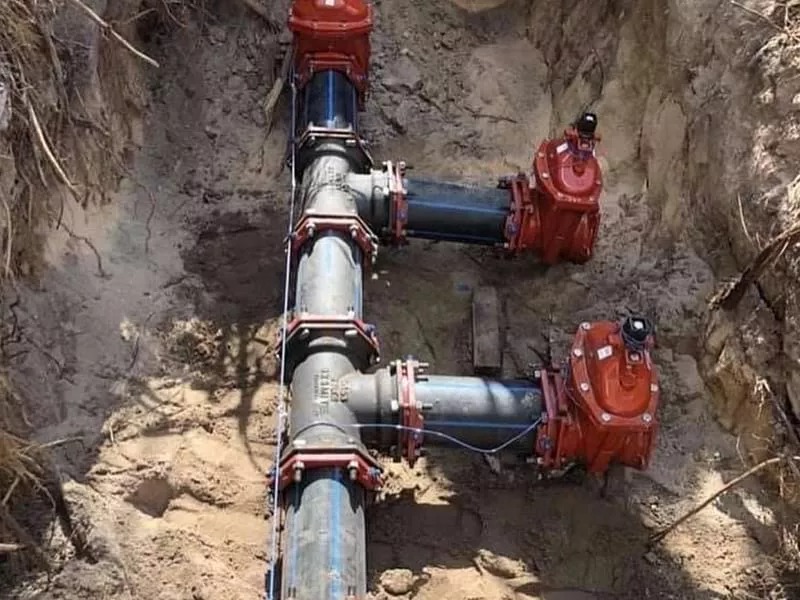

You want your hdpe pipes to stay strong for years. Good support keeps them from sagging or shifting. The soil around the pipes does most of the work. Pick embedment soil that is clean and free of big rocks. Gravel and sand work well. The soil should let the pipes move a little but still hold them in place. In areas with earthquakes or heavy traffic, use extra bracing or flexible supports. Materials like galvanized steel, stainless steel, and hdpe make great supports because they last long and resist corrosion.

XFusing PE pipe fittings work for water, gas, irrigation, and industrial pipelines. They meet international standards like ISO4427, ASTM D3261, and EN, so you know you’re getting quality.

Backfilling

Backfilling is the last step in pipe installation. You want to protect your hdpe pipes and keep them from moving. Make the trench wide enough for the pipes plus 12 inches. Use coarse-grained soil like gravel or sand for embedment. Place the soil in layers no thicker than 6 inches. Compact each layer to at least 85% density. If you lay pipes under roads, go for 95%. Pad the bedding with 4-6 inches of tamped material if you find big stones. Haunching, or packing soil under the lower half of the pipe, helps spread out the load. Extend the first backfill to cover 75% of the pipe diameter. Use trench shields if needed, and raise them slowly to avoid disturbing the soil. Never drop or roll pipes into the trench. Finish with clean soil and compact it well.

Note: Proper installation of polyethylene pipe and underground poly-pipe fittings means your system will last longer and stay leak-free.

Post-Installation

Pressure Testing

You need to check your hdpe pipes after you install them. Pressure testing helps you find problems early. First, look at your project drawings. Make sure everything matches. Check that supports, fittings, and gaskets are in place. Clean all valves and strainers. Get your permits ready. Make sure every part can handle the pressure. Fill the pipes with water. Let out all air pockets. Put gauges at the lowest and highest spots. Raise the pressure to 1.5 times the normal level. Hold the pressure for one hour. Watch for any drops. If the pressure does not change, your hdpe pipes are ready. When you finish, let the pressure out slowly with drain cocks and hoses.

Tip: Always use ASTM and manufacturer rules for pressure testing. This keeps your work safe and strong.

Leak Inspection

After pressure testing, you need to look for leaks. There are many ways to check for leaks. Look for water stains or puddles near joints. Check for damp spots around connections. Listen for hissing sounds with special sensors. This works well for buried pipes. Use thermal imaging to spot temperature changes from leaks. Dye testing is good for pipes you can see. Add colored dye to the water and watch for leaks. Pressure testing also helps you find leaks. Isolate pipe sections and watch the gauges.

If you find a leak, fix it before you finish. This saves you time and money later.

Documentation

You need proof that your work meets all standards. Good paperwork shows you did the job right. Keep records of every inspection. Include trench checks, bedding, and backfill. Save test results for hdpe material, compaction, and curing. Collect certificates that show compliance. Write down pipe stiffness, resin type, and date made. For corrugated hdpe pipes, add plant audit reports and test results for each size. These papers help you pass inspections and protect your work.

• Inspection reports for each step of installation

• Certificates showing material quality and compliance

• Test results for pressure, leak checks, and pipe stiffness

• Manufacturer’s audit records for hdpe pipes

Keep your paperwork neat and safe. It proves your installation is strong and ready to use.

You want your PE pipe system to last for decades, so stick to the basics: prep your site, handle pipes with care, make clean cuts, and join fittings the right way. XFusing PE pipe fittings give you strong, flexible connections that resist cracks, corrosion, and UV damage.

• HDPE pipes stay reliable in tough conditions and need less maintenance.

• Leak-proof joints and smooth surfaces help you save money on repairs and energy.

  Follow the manufacturer’s instructions and test for leaks. You’ll enjoy a system that works well for years.

FAQ

How do I choose the right XFusing PE pipe fitting for my project?

You need to match the fitting type to your job. Butt fusion works for big pipes. Electrofusion fits tight spaces. Compression fittings are quick and easy. Threaded fittings help with custom setups. Check your pipe size and use XFusing’s guides for help.

Can I install XFusing PE pipe fittings myself?

Yes, you can! XFusing fittings are user-friendly. If you follow the instructions and use the right tools, you’ll get strong, leak-free joints. For big jobs or gas lines, you might want a pro to help.

What standards do XFusing PE pipe fittings meet?

XFusing fittings meet top international standards like ISO4427, ASTM D3261, and EN. You get safe, reliable products for water, gas, irrigation, and industrial use.

How do I prevent leaks during installation?

Clean pipe ends before joining. Use the right fitting and tool for your pipe. Follow XFusing’s instructions step by step. Always test for leaks after you finish.

What temperatures can XFusing PE pipe fittings handle?

XFusing PE pipe fittings work from -40°C to 60°C. They stay strong in cold winters and hot summers. You can trust them in almost any climate.
