| Quantity: | |
|---|---|
 | Specification | Working Pressure | Temp Range | Packaging (Box) |
| Φ20 | PN 2.0 MPa | -20°C to 95°C | 25×9 packets (255 units) | |
| Φ25 | PN 2.0 MPa | -20°C to 95°C | 15×9 packets (135 units) | |
| Φ32 | PN 1.6 MPa | -20°C to 95°C | Contact for details |

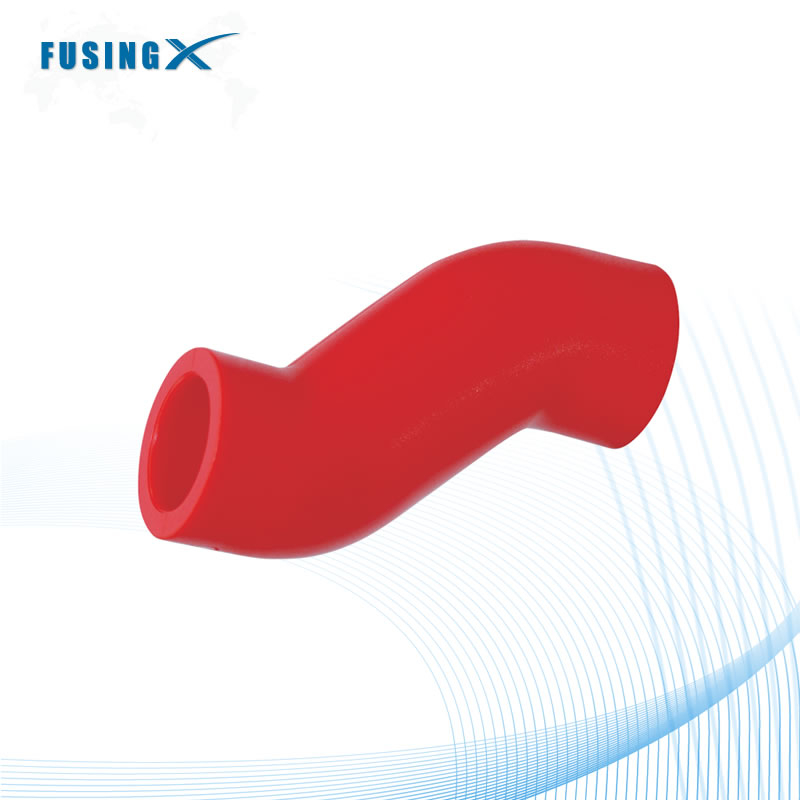

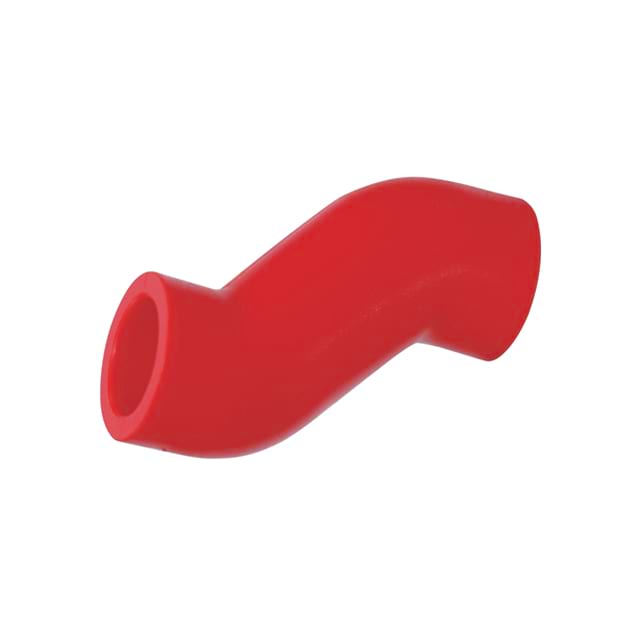

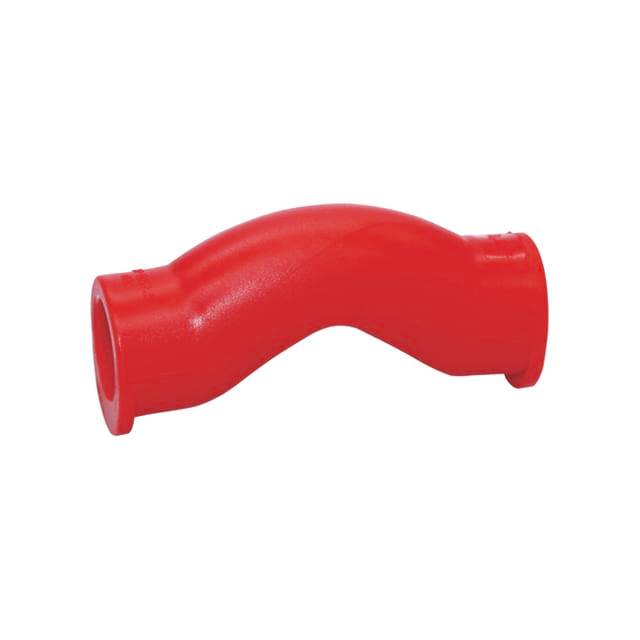

Engineered from Grade PPR-R (Polypropylene Random Copolymer), our S-shaped offset bends deliver superior performance in hot/cold water distribution systems (up to 95°C/203°F). These precision-molded fittings are designed to overcome spatial constraints in:
✅ Residential Plumbing - Tight under-sink/crawl space installations
✅ Commercial Projects - HVAC and high-rise water supply networks
✅ Industrial Systems - Chemical-resistant process piping
20,000 m² production facility with 300+ skilled technicians.
Exported to 20+ countries serving 100+ major clients.
Automated machinery & strict quality control since 2005.
Patented curvature reduces turbulence by 40% vs. standard elbows
NSF/EN 12201 certified for potable water safety
Withstands 20+ years of pressure cycling at PN 2.0 MPa
30% Faster Assembly - Eliminates 2+ connector joints per offset
Leak-Point Reduction - Monolithic fusion joints vs. threaded connections
15°-45° Adjustability - Accommodates imperfect alignments
Manufactured in our ISO 14001-certified facility using 100% recyclable PPR-R material. Reduces carbon footprint by:
62% vs. metal alternatives (lifecycle analysis)
22% material waste reduction through precision molding
Offset bends outperform traditional 90° elbows by reducing hydraulic resistance by up to 40%. FusingX's computer-designed curvature maintains laminar flow to prevent:
Water hammer incidents
Sediment accumulation
Pressure drops in long runs
Pro Tip: Combine with our PN 2.0 PPR Pipes for complete pressure-rated systems.
