When it comes to plumbing and irrigation systems, choosing the right fittings is crucial for ensuring the durability, efficiency, and long-term reliability of the system. PE threaded fittings, made from high-quality polyethylene (PE), have gained widespread popularity due to their impressive performance in a range of applications. These fittings are designed to provide secure, leak-proof connections while ensuring easy installation, which is especially important for both residential and commercial projects.
Before diving into the installation process, it's important to understand the functionality and advantages of PE threaded fittings. These fittings are commonly used in various plumbing and irrigation applications due to their resistance to corrosion, chemical resistance, and flexibility. Made from polyethylene (PE), these fittings are designed to withstand harsh environments, ensuring a long service life. They are commonly used in systems where corrosion is a concern, such as in water supply lines, drainage systems, and irrigation systems.

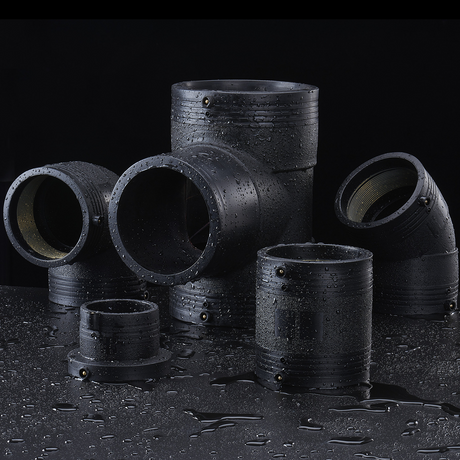

The three most commonly used types of PE threaded fittings are elbow fittings, tee fittings, and straight-through fittings. Each of these fittings serves a specific purpose and helps in achieving seamless connections in the plumbing or irrigation system.
Before starting the installation of PE threaded fittings, gather the necessary tools and materials to ensure a smooth and successful process. Here’s a list of items you will need:
Pipe cutter or saw to trim the pipes if needed
Pipe wrench or spanner
Teflon tape (sealing tape) to ensure a leak-proof connection
Clean cloth or brush for cleaning pipe ends
Lubricant or pipe joint compound (optional but helpful for easier fitting)
Before beginning the installation, inspect the fittings to ensure they are free from defects or damage. Additionally, clean the pipe ends thoroughly to remove any dirt, debris, or moisture. This step ensures that the connections are smooth and tight, reducing the likelihood of leaks after installation.
Elbow fittings are used to change the direction of the pipeline. They are commonly used to redirect pipes in 45-degree or 90-degree angles. Here’s how to install an elbow PE threaded fitting:
Step 1: Choose the Correct Elbow Fitting
Select the appropriate elbow fitting based on the pipe size and the angle required. Common angles for elbow fittings are 45° and 90°.
Step 2: Prepare the Pipe Ends
Use a pipe cutter to trim the pipe to the desired length. Clean the ends of the pipes to remove any dirt, debris, or moisture, ensuring a clean and secure connection.
Step 3: Apply Sealing Tape
Wrap the threads of the pipe with Teflon tape (sealing tape). This helps to create a leak-proof seal when the fitting is screwed onto the pipe.
Step 4: Attach the Elbow Fitting
Screw the elbow fitting onto the threaded pipe ends, turning it clockwise until it is snug and tight. Ensure that the fitting is aligned properly to achieve the correct angle (90° or 45°) for the pipeline.
Step 5: Tighten the Connection
Use a pipe wrench or spanner to tighten the connection further. Be careful not to overtighten, as this could damage the threads or the fitting.
Step 6: Test for Leaks
After installation, conduct a water pressure test to check for any leaks at the connection points. If there are leaks, re-tighten the fitting or reapply Teflon tape to ensure a tight seal.
Tee fittings are used to create a branch in a pipe system, allowing water or fluid to flow in multiple directions. Follow these steps to install a tee PE threaded fitting:
Step 1: Select the Right Tee Fitting
Choose a tee fitting that matches the pipe size and the desired configuration. Tee fittings are available in various sizes to accommodate different pipe diameters.
Step 2: Prepare the Pipe Ends
Cut the pipes to the required lengths and clean the ends of the pipes to remove any dirt, debris, or moisture.
Step 3: Apply Sealing Tape
Wrap Teflon tape around the threads of the pipes that will connect to the tee fitting. Be sure to wrap the tape evenly and securely.
Step 4: Install the Tee Fitting
Insert the pipe ends into the tee fitting, making sure to align the pipes properly. Screw the pipes into the threaded connections on the tee fitting, turning them clockwise until they are tightly secured.
Step 5: Tighten the Connection
Use a pipe wrench or spanner to ensure the fittings are tightly secured, ensuring a leak-proof seal.
Step 6: Test the System
Once the tee fitting is installed, perform a water pressure test to verify that the connections are secure and free from leaks.
Straight-through fittings are used to connect two pipes in a straight line, providing a simple, direct connection. Here’s how to install a straight-through PE threaded fitting:
Step 1: Select the Correct Straight-Through Fitting
Choose a straight-through fitting that matches the pipe size and material. Ensure the fitting is made of high-quality polyethylene to ensure durability and resistance to corrosion.
Step 2: Prepare the Pipe Ends
Trim the pipe to the desired length, making sure to clean the pipe ends to ensure a tight and secure connection.
Step 3: Apply Sealing Tape
Wrap Teflon tape around the threads of the pipe, making sure to cover the entire threaded area to prevent leakage.
Step 4: Install the Straight-Through Fitting
Insert the pipes into the straight-through fitting and turn them clockwise to tighten the connection. Ensure that the pipes are aligned correctly and the fitting is securely in place.
Step 5: Tighten the Connection
Use a pipe wrench or spanner to tighten the fitting, ensuring a firm and secure connection. Avoid overtightening to prevent damage.
Step 6: Leak Test
Conduct a water pressure test to ensure that there are no leaks at the connection points. If needed, reapply Teflon tape or tighten the fitting further.
Once the fittings are installed, it's essential to conduct a thorough check for any potential issues. Here are a few post-installation tips:
Inspect All Connections: Double-check all threaded connections to ensure they are tightly secured.
Perform a Pressure Test: Test the system under pressure to ensure there are no leaks.
Maintain the System: Regularly check the system for leaks or wear and tear, and ensure the fittings are in good condition.
Installing PE threaded fittings—whether elbows, tees, or straight-through models—can be straightforward when you follow the proper steps. These fittings are designed to provide long-lasting durability, corrosion resistance, and easy installation, making them the ideal choice for various plumbing and irrigation applications.
